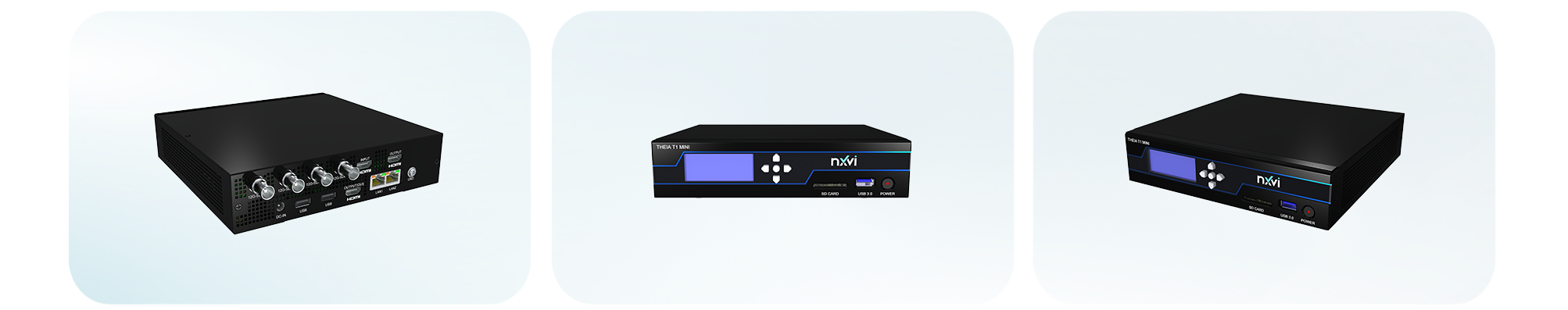

Theia T1 Mini - 4ch 4K Encoder/Decoder
New Vision
High performance, Encode/Decode, small form-factor, Light weight and low cost
Theia T1 Mini encoder/decoder supports 4K/1080 HEVC real-time encoding and decoding via quad-link 12G-SDI or HDMI 2.1. It's highly flexible with 4x 12G-SDI or HDMI 2.1 inputs, and it offers HDR10/HLG support on HDMI 2.1 output. This system provides 4:2:0/4:2:2 color sampling and 10-bit HDR HEVC encoding at up to 60 fps. Installation is easy, and the user-friendly WebGUI simplifies operation. -
-
Professional Encoding, Decoding, and Streaming
Broadcasting 4K HEVC Codec
Theia T1 Mini is the ultimate choice for high-quality, hassle-free video processing.
Product Features
Product Features
Product Specification
| Feature | Specification | |

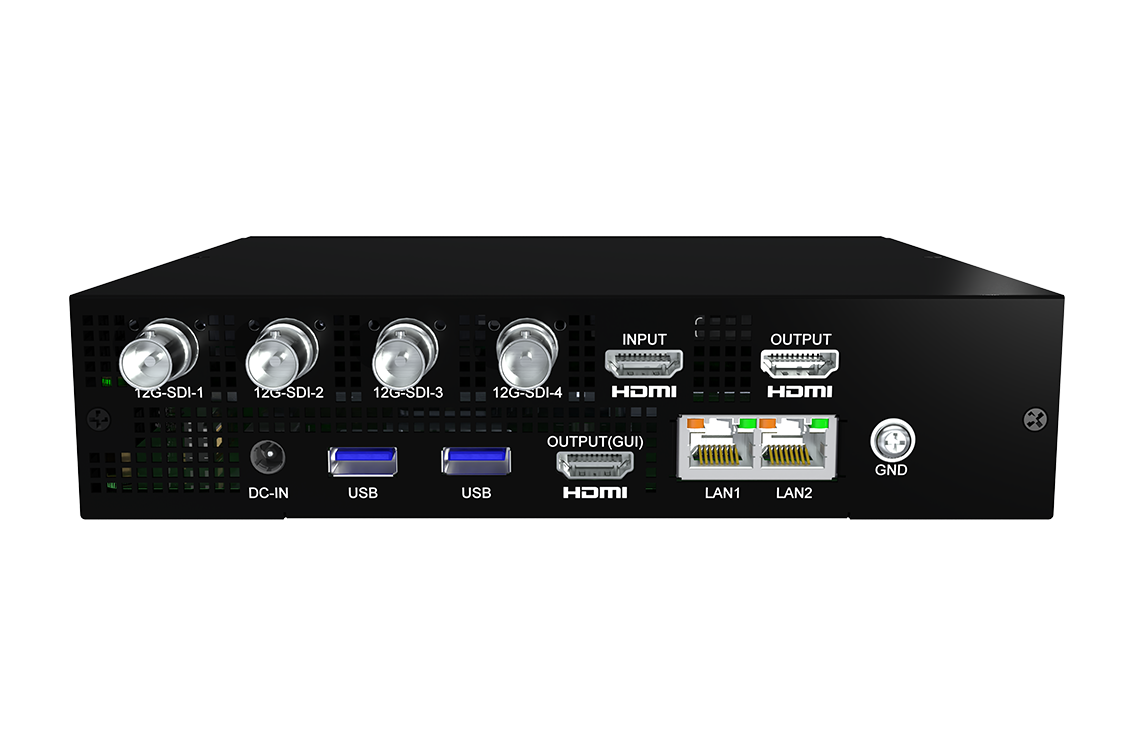

| Interface | Input | SDI x 4 (BNC type) - Support 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI - Support Quad-Link 3G-SDI/1.5G-SDI - 4K SQD/2SI source mapping - 10b, YCbCr 4:2:2 HDMI x 1(Type A) up to 4Kp60 as specified in HDMI 2.1 (At the same time, choose either SDI or HDMI) Audio: SDI/HDMI embedded audio |
| Output | SDI x 4 (BNC type) - Support 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI - Support Quad-Link 3G-SDI/1.5G-SDI - 4K SQD/2SI source mapping - 10b, YCbCr 4:2:2 HDMI x 1(Type A) support up to 4Kp60 as specified in HDMI2.1 for preview HDMI x 1(Type A) support up to 1080p as specified in HDMI1.4b for WebGUI | |
| Gigabit Ethernet x2(10/100/1000Mbps) | ||
| USB3.0 x3 | ||
| SD Card | ||
| Encode/Decode | Video | Resolution: 4ch: 3840 x 2160 pixel or resolution |
| Pixel format: 8b/10b 4:2:2, 4:2:0 | ||
| Framerate: 60, 59.94, 50, 30, 29.97, 25, 24，23.98 | ||
| Format: HEVC | ||
| Bitrate: 3Mbps – 120Mbps | ||
| Rate control: CBR/VBR | ||
| Support HDR10/HLG | ||
| Audio | Format: AAC | |
| Channel: SDI:16ch/HDMI: 7.1 channel | ||
| Preview | Video | Resolution: 3840 x 2160 pixel or lower resolution Pixel format: 8b/10b, RGB and YCbCr 4:4:4/4:2:2/4:2:0 Framerate: 60, 59.94, 50, 30, 29.97, 25, 24，23.98Hz Support HDR10/HLG |
| Audio | Channel: HDMI:7.1 channel | |
| Streaming | Protocol | MPEG-TS over UDP/RTP (Unicast & Multicast) FLV over RTMP (encoder only) HLS with MPEG-TS/FMP4 SRT (caller, listener) |
| Recording | Storage | SD Card（Supports simultaneous dual storage recording including SD and external USB storage） |
| External USB disk vis USB port | ||
| 256GB SSD, M.2 2280 | ||
| File Format | MP4, MPEG2-TS | |
| Software Features | Management | Web User Interface SNMP v2c with remote SNMP supervisor (alarms & traps) |
| System Monitor | Video input status、Streaming status and Ethernet usage | |
| Streaming | Deliver two streams to different destinations for each channel | |
| Recording | Loop recording | |
| Preview | SDI to HDMI Preview | |
| Chassis | User Interface | Buttons and LCD display on front panel |
| Dimension | 190mm(W) x 187mm(D) x 44.4mm(H) | |
| Power Consumption | 100W | |
| Power Input | DC12V ± 10% | |
| Weight | 1.7Kg | |
| Rack mount（*optional） | Rack mount 2 T1 Mini for high channel density | |
| Operating Temperature | 0° C ~ 40° C | |
| Storage Temperature | -20° C ~ 80° C | |
| Certification | CE/FCC (Class B)/TUV/CB/CCC/RoHS/KC | |
