THENA A1 LITE – AI Inference Accelerator Box
Intelligent Solutions at the Edge
UHD multi-ch & multi-codec video engine, low-power edge inference AI engine,high-performace 64-bit multi-core host engine -
-
4K/8K Real-Time Video Al Inference
Fanless Design and Low Power Consumption
THENA A1 LITE features a fanless design and low power consumption, making it well-suited for broadcasting applications, especially in studio and live event settings. The fanless design ensures silent operation, eliminating any noise interference during broadcasts. The low power consumption contributes to energy efficiency and reduces the heat generated by the device for a more stable and reliable performance.
Product Features
Product Features
Product Specification
| Feature | Specification | |
| Host Processor | CPU | Quad-Core Cortex-A76+Quad-Core Cortex-A55 |
| AI Engine | 32TOPs | |
| GPU | Mali-G610 MP4 | |
| Codec | Decode: HEVC/VP9 (8Kp60), AVC (8Kp30), AV1 (4Kp60) Encode: HEVC/AVC (8Kp30) | |
| System Memory | On board/Socket memory | 8GB (up to 32GB) |
| Supported Type | LPDDR4/LPDDR4x/LPDDR5 | |
| Max. DIMM Frequency | 3200MT/s | |
Storage | eMMC | 32GB (up to 64GB) |
| Flash/EEPROM | Flash | 256Mb SPI Flash |
| EEPROM | 2Kb I²C EEPROM | |

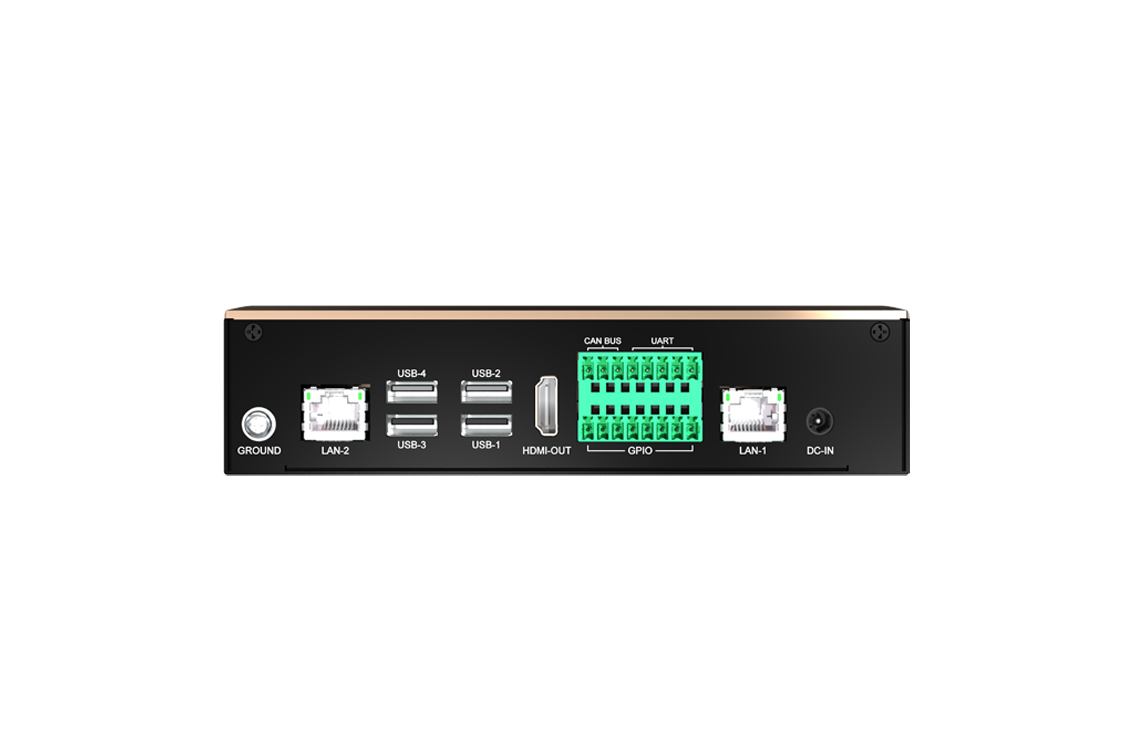

| Rear I/O | HDMI Out | HDMI 2.0 port |
| USB 2.0 | USB x4 Type-A ports | |
| USB 3.1 | ||
| RJ45 (w/ LEDs) | Gigabit Ethernet x2 (10/100/1000 Mbps) ports (One is optional for PoE 802.3at)* | |
| RS485/RS422/RS232 | Multi-mode port | |
| CAN Bus | CAN 2.0B port | |
| GPIOs | Programmable GPIO Pins x6 (Terminal Block Connector) | |
| DC-IN JACK | Power JACK port (PWR adapter plug type: 5.5x2.5mm, Center Positive"+") | |
| Front IO | Micro USB | Micro USB port (For system recovery purpose) |
| RST BTN | Reset button w/ LED | |
| Recovery BTN | Recovery button | |
| Status LED | Power LED | |
| Internal Connector/Header | UART Header | 4-pin UART TTL type debug header |
| Fan Header | 4-pin FAN header | |
| DIP Switch 1 | Recovery mode setting | |
| DIP Switch 2 | RS232/RS422/RS485 mode selection | |
| DIP Switch 3 | RS485 H/F Duplex mode selection | |
| Power Requirement | Power Consumption | ＜25W |
| Power Source Option | DC-JACK (Maximum 50W) or PoE IEEE802.3at (Maximum 30W) | |
| Expansion Slot/Module | M.2 Slot | M.2 M-Key for 2280 SSD NVMe module support |
| OS | Ubuntu, Debian | |
| Dimension | 175mm(W) x 104mm(D) x 44mm(H) | |
| Rack mount (*optional) | Wall Mount x1 or DIN Rail x2 support | |
| Operating Temperature | -20°C ~70°C | |
| Storage Temperature | -20°C ~70°C | |
| Certification | CE/FCC (Class A)/RoHS | |
*The features of PoE are optional. If you are intersetsed, please contact our sales representative for the options.
