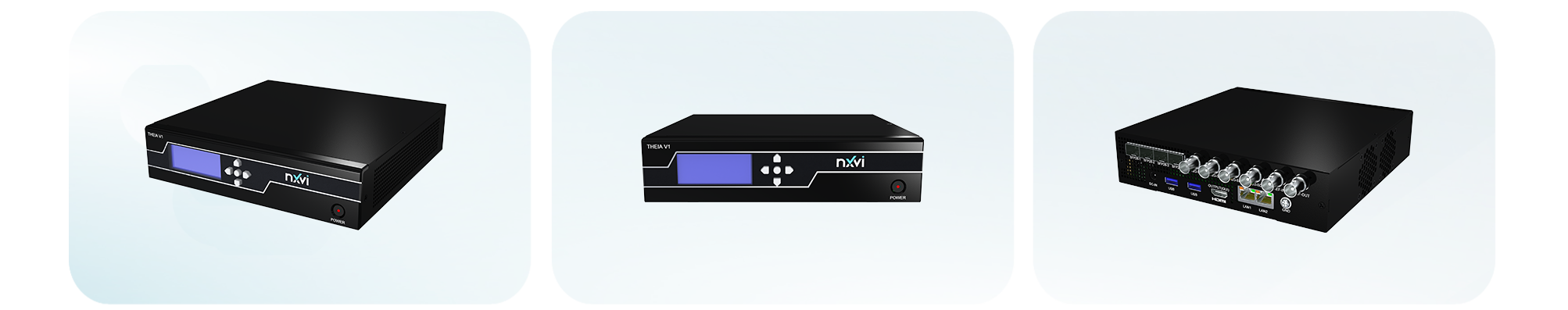

THEIA V1 – 4K ST 2110 IP Converter
The Move to IP
Bi-directional conversion, improved efficiency, interoperability, industry standard
THEIA V1 ST 2110 IP converter excels at bi-directional conversion of 4K video and audio between SDI-12G and 25G SFP28 formats. It ensures reliable multimedia signal transmission per SMPTE ST 2110 standards, handling ancillary data and 4ch 4K video transmission. This makes it versatile for various applications. -
-
ST 2110 Compatible Multimedia Signal Converting
Seamless Bi-Directional 4K Video & Audio Conversion
Integrated NMOS control technology enhances control and management for TV broadcasting, film production, and professional video. With this converter, you can experience exceptional signal conversion and a top-notch multi-media experience.
Product Features
Product Features
Product Specification
| Feature | Specification | ||
| Video Format | Resolution: 7680 x 4320/3840 x 2160/1920 x 1080 Pixel format: 10b 4:2:2 Frame rate: 60/59.94/50/30/29.97/25/24/23.9 | ||
| Audio Format | 48KHz 16 channel (SDI embedded audio) | ||
| SDI Standard | ST 292, ST 274, ST 424, ST 425, ST 2081-1, ST 2081-10, ST 2082-1, ST 2082-10, ST 2084, ST 210 | ||
| Ethernet Interface | Support 2x Primary 25GbE links and two Secondary 25GbE links Support 2x RJ-45 Ethernet ports for control and management | ||
| SMPTE ST 2110 Standards | ST 2110-10: System timing (ST 2059) ST 2110-20: Uncompressed active video ST 2110-21: Traffic shaping ST 2110-22: Compress video (JPEG-XS Codec option) ST 2110-30: PCM digital audio ST 2110-40: Ancillary dat | ||
| SMPTE ST 2059 Standards | Support ST 2059-1 and ST 2059-2 (Profile for IEEE1588 PTP) | ||
| SMPTE ST 2022 Standards | Support ST 2022-7 and ST 2022-8 | ||
| NMOS Control Software | IS-04: Discovery and registration IS-05: Connection management IS-09: System parameter specification | ||

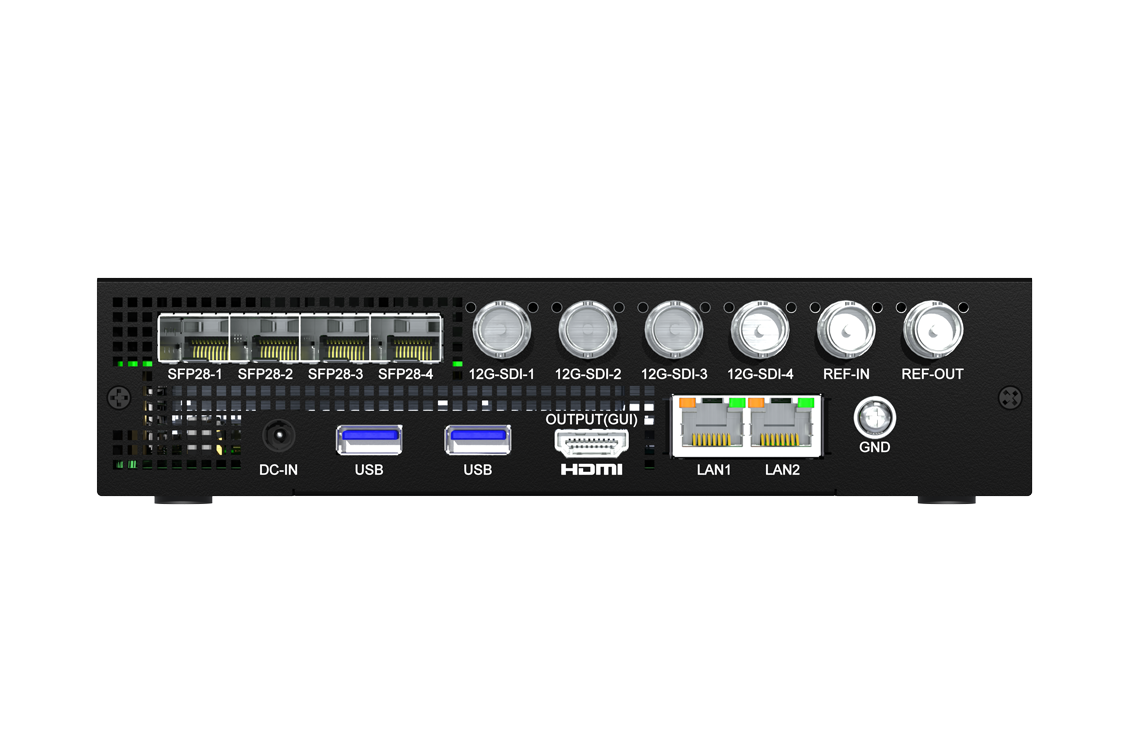

| Interface | SDI Input | 12G-SDI (BNC) x4 | 12G-SDI channel: 4ch (up to 8Kp60, 10b, 4:2:2, YCbCr) Audio: SDI embedded audio |
| SDI Output | 12G-SDI (BNC) x4 | 12G-SDI channel: 4ch (up to 8Kp60, 10b, 4:2:2, YCbCr) Audio: SDI embedded audio | |
| HDMI Output | HDMI 1.4b x1 | HDMI 1.4b for WebGUI Setup | |
| REF In | BNC x1 | REF In x1, Bi-Level or Tri-Level, BNC | |
| REF Out | BNC x1 | REF Out x1, BNC | |
| ST 2110 Fiber | SFP28 x4 | 25GbE, support ST 2110 IP | |
| Ethernet | Gigabit Ethernet x2 | RJ-45 x2 (10/100/1000Mbps) | |
| USB | USB x2 | USB 3.0 Type A | |
| Power Supply | AC Adapter 100V-240V, 50/60Hz w/DC 12V/10A output | ||
| Power Consumption | < Max 80W | ||
| System Dimension | 190mm (W) x 190mm (D) x 44mm (H) | ||
| Operating Temperature | 0° C ~ 40° C | ||
| Storage Temperature | -20° C ~ 80° C | ||
