Theia D1 – 4K/8K Decoder
Super Real
8K UltraHD, low latency, low noise, and HDMI compliance. -
-
Compact Decoding & Playback
8K Video Decoding
Theia D1 is capable of decoding and playing up to 8Kp60 HEVC 10-bit 4:2:0 video content. The video content can be decoded through Gigabit Ethernet or external USB storage device and be displayed through HDMI 2.1 output port. The MP4/MKV/MOV formatted contents can also be played back. The incoming audio channels will be mapped into 7.1ch audio at maximum. The built-in player supports stop/forward/backward/pause/play feature for local content playback.
Product Features
Product Features
Product Specification
| Feature | Specification | ||
| Decoder | Video | Resolution | 7680 x 4320 / 24p / 25p / 30p / 50p / 60p |
| 3840 x 2160 / 24p / 25p / 30p / 50p / 60p / 120p | |||
| 1920 x 1080 / 24p / 25p / 30p / 50p / 60p / 120p | |||
| 1920 x 1080 / 50i / 60i | |||
| 1280 x 720 / 24p / 25p / 30p / 50p / 60p | |||
| Codec format | HEVC(H.265)/AVC(H.264)/AV1, HDR parameters | ||
| Video Signal Format | YCbCr 4:2:0 | ||
| Color Depth | 8b/10b | ||
| Bitrate | Max. 200Mbps | ||
| Audio | Support Format | AAC | |
| Sampling Frequency | 44.1KHz, 48KHz, 96KHz | ||
| Audio Channels | HDMI: 7.1 Channel SPDIF/Line out: 2ch(R/L) | ||

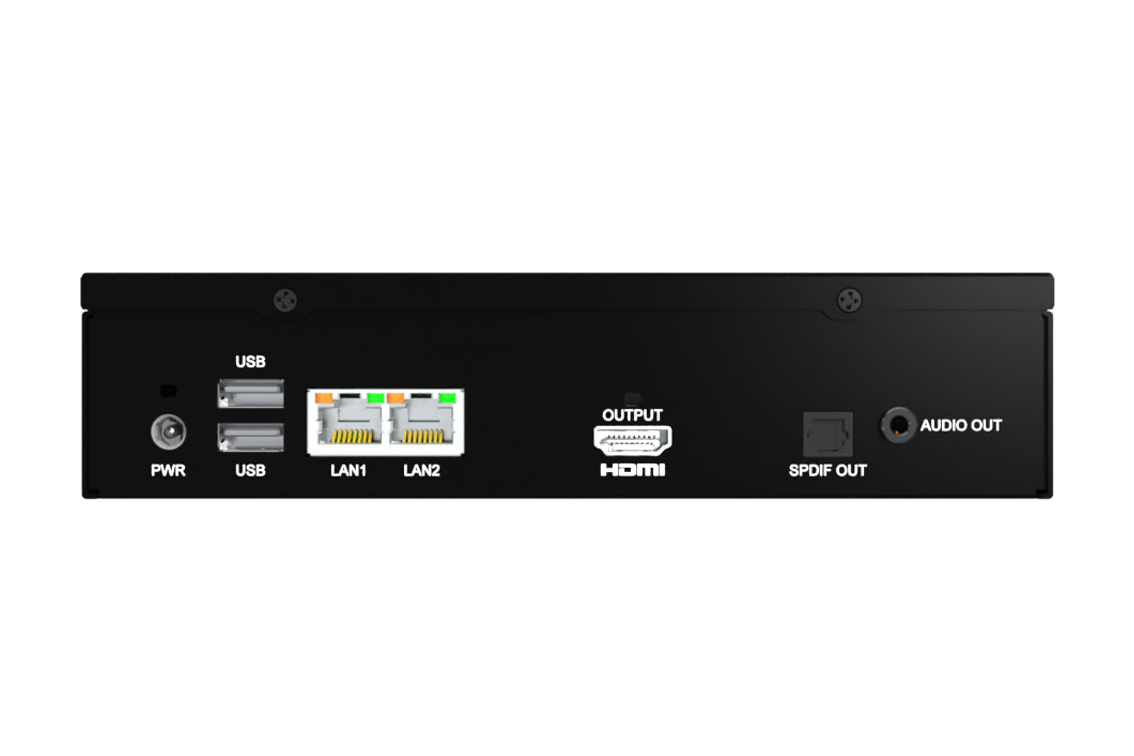

| Interface | Input | Gigabit Ethernet x2 (10/100/1000Mbps) | |
| Output | HDMI2.1 | ||
| Audio: SPDIF | |||
| Audio: Line out | |||
| USB x2 | |||
| Streaming Protocol | MPEG-TS over UDP/RTP (Unicast & Multicast) | ||
| HLS with MPEG-TS/FMP4 | |||
| SRT (caller, listener) | |||
| Power Supply | AC Adapter 100V-240V, 50/60Hz with DC 12V/5A output | ||
| Power Consumption | ＜20W | ||
| Dimension | 190mm(W) x 190mm(D) x 44mm(H) | ||
| Operation Temperature | 0° C ~ 40° C | ||
| Storage Temperature | -20° C ~ 60° C | ||
| Certification | CE/FCC(Class B)/TUV/CB/KC | ||
